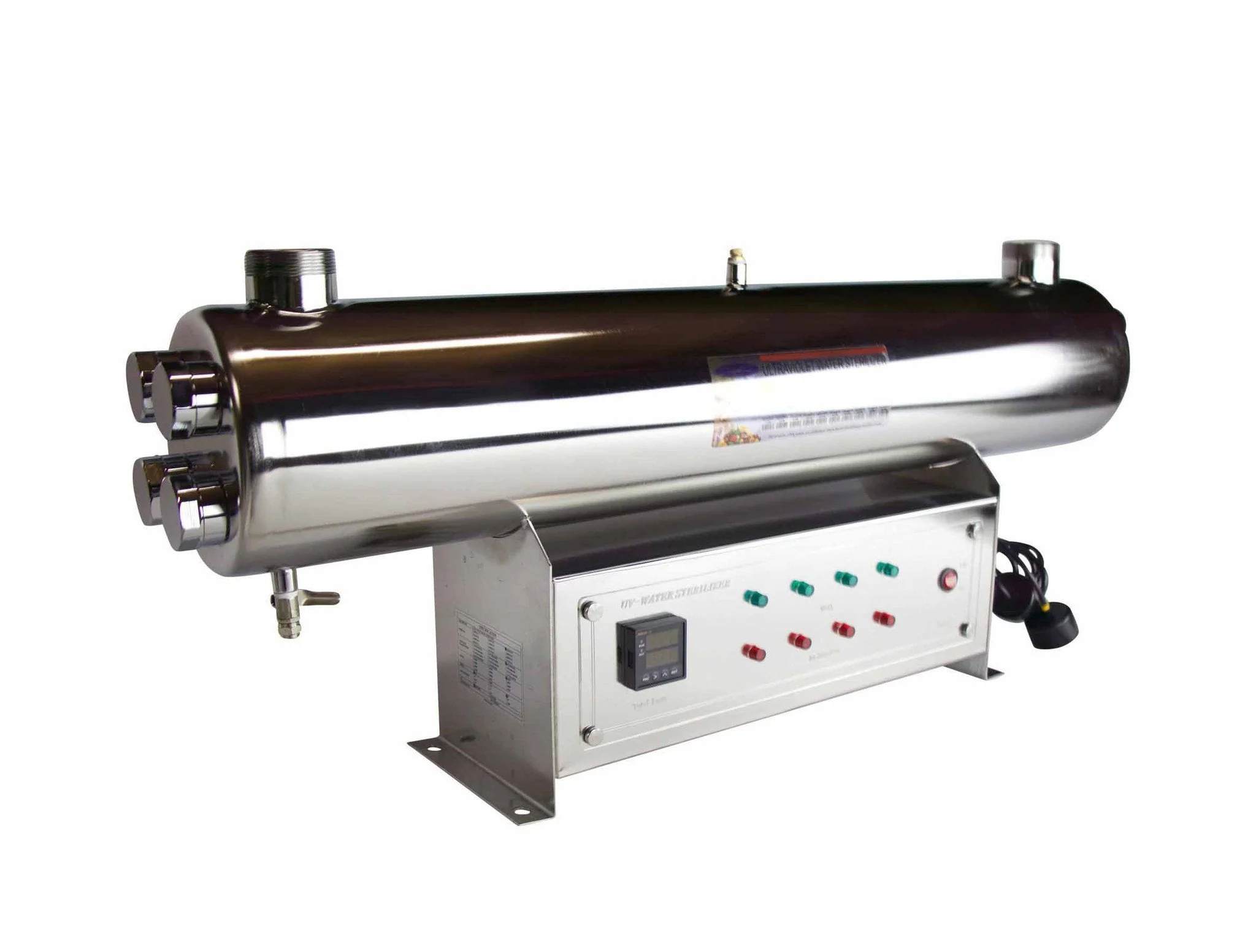

AquaBest 60 GPM-HTM UV-Ultraviolet


AquaBest UV-Ultraviolet 60 (GPM) gallon Per Minutes Aqua Flow high Quality Pure UV Ultraviolet Water sterilization systems provide a 99.99% reduction in bacteria, virus and protozoan cysts. Standard Aqua Flow UV-Ultraviolet Water Sterilizer units deliver a 30,000mw/cm UV dose at a 254 nm wave length (at rated flow). Standard units have an audible and visible on/off lamp failure alarm, optional models sophisticated with UV intensity monitor to advice the safety wave length and elapsed time meter to advice when the lamp is to be replaced are also available. Lamps are installed through the ace. AquaBest 60 GPM-HTM UV-Ultraviolet


  1. Heavy duty stainless steel pressure vessel
  2. Heavy duty quartz sleeve
  3. High output, hard glass UV lamps for maximum efficiency
  4. CE ballast with lamp failure indicator and warning buzzer
  5. Ceramic end cap of UV lamp
  6. 30000mic. watt sec/cm2 at energy of 253.7nm wave length
  7. Working pressure 125PSI
  8. Low power consumption
  9. 9000 hours lamp life (approx. 1 year of use)
  10. 110/220V, 50HZ/60HZ
  11. Vertical or Horizontal installation
  12. UV light Monitor available


AquaBest 60 GPM-HTM UV-Ultraviolet

  1. Dimension LxWxD (mm) 980X280X280 HT-HTM
  2. Electrical Volts: 110/220V / 50/60HZ
  3. Flow Rate : 60-GPM
  4. In/out Port : 2” or Flange
  5. UV Lamp (PC) : 5
  6. Quartz Sleeve (PC) : 5
  7. Lamp Failure Device : Yes
  8. Ambient Temperature : 2-50oC
  9. Lamp Watts : 40wx5
  10. Chamber : SS316
  11. Accumulated Timer:Yes
  12. UV Light monitor:Yes
